Polyhose PH149 – HIGH PRESSURE HYDRAULIC HOSE – R8
Applicable Standard : SAE 100R8 / DIN EN ISO 3949

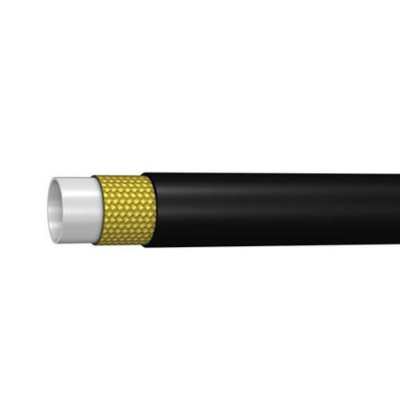

Construction
Inner tube: Thermoplastic Elastomer
Reinforcement: One or more Braids of Aramid Fiber
Cover: Polyurethane, Black Colour, Pin pricked
Application
High Pressure hydraulic lines 100 to 420 bar compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion for use with petroleum, synthetic or water based fluids in hydraulic system. Suitable for Agricultural machinery, Earthmoving, safety, Rescue and material handling equipment, Also suitable for industrial gases and other applications. please consult manufacturer
| Item Code |
Dash Size |
DN |
 ID
|
 OD
|
 WP
|
 BP
|
 BR/r
|
 W
|
|||||
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH149-02 | -02 | 03 | 1/8 | 3.2 | 0.320 | 8.1 | 6000 | 420 | 24000 | 1680 | 1.0 | 25 | 57 |
| PH149-03 | -03 | 05 | 3/16 | 4.8 | 0.405 | 10.3 | 5000 | 350 | 20000 | 1400 | 1.0 | 25 | 87 |
| PH149-04 | -04 | 06 | 1/4 | 6.4 | 0.490 | 12.4 | 5000 | 350 | 20000 | 1400 | 1.3 | 32 | 118 |
| PH149-05 | -05 | 08 | 5/16 | 8.0 | 0.560 | 14.2 | 4350 | 300 | 17400 | 1200 | 1.8 | 45 | 147 |
| PH149-06 | -06 | 10 | 3/8 | 9.5 | 0.620 | 15.7 | 4000 | 280 | 16000 | 1120 | 2.2 | 55 | 170 |
| PH149-08 | -08 | 12 | 1/2 | 12.7 | 0.760 | 19.3 | 3500 | 245 | 14000 | 980 | 3.0 | 77 | 219 |
| PH149-10 | -10 | 16 | 5/8 | 16.0 | 0.910 | 23.1 | 2900 | 200 | 11600 | 800 | 4.3 | 110 | 295 |
| PH149-12 | -12 | 20 | 3/4 | 19.0 | 1.040 | 26.4 | 2300 | 165 | 9200 | 660 | 5.5 | 140 | 372 |
| PH149-16 | -16 | 25 | 1 | 25.4 | 1.310 | 33.3 | 2000 | 140 | 8000 | 560 | 8.0 | 200 | 511 |
| PH149-20 | -20 | 32 | 1.1/4 | 31.8 | 1.654 | 42.0 | 1500 | 100 | 6000 | 400 | 14.0 | 350 | 750 |
Temperature Range : Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids
Please donwload PDF for more information.
