KEY FEATURES
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs.
• Antistatic and anti-toxic cover
• Over standard pressure resistance
APPLICATIONS & FLUIDS
• Hydraulics: medium-high pressure lines in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F

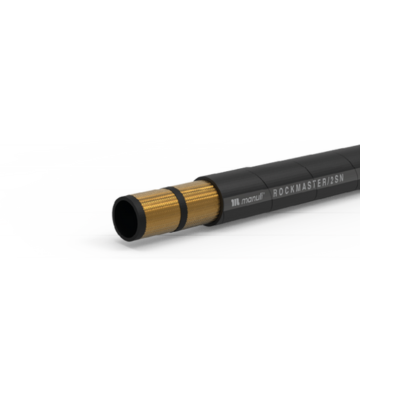

TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance
APPLICABLE SPECS
Exceeds EN 853 2SN; SAE 100 R2AT; ISO 1436 2SN/R2AT
TYPE APPROVALS
ABS; BV; DNV-GL; DNV-GL (MED); LR; FRAS; CU-TR; MSHA; RINA ; B; NK; MA; DIN 5510-2; CCS; KRS
