KEY FEATURES
• Validated for high fatigue resistance
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs.
• Antistatic and anti-toxic cover
• Upgraded temperature resistance
• BIO biological and mineral oils compatibility
APPLICATIONS & FLUIDS
• Hydraulics: very high pressure power lines in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F

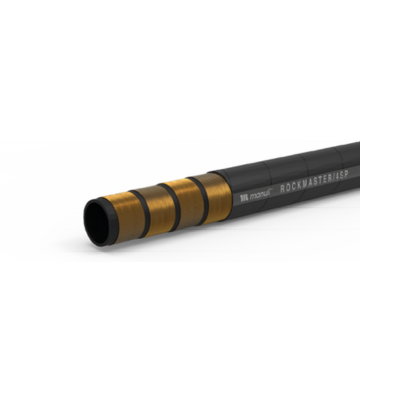

TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals
COVER
STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance
APPLICABLE SPECS
Exceeds EN 856 4SP; ISO 3862 4SP; DN 16 & 19: thin cover style, exceeds EN 856 4SP and ISO 3862 4SP
TYPE APPROVALS
ABS; DNV-GL; DNV-GL (MED); BV; FRAS; CU-TR; MA; MSHA; RINA; B; LR; NK; DB (EN 45545-2); CCS; KRS
